Front suspension jig, more testfitting of the radiator and rear caliper mounts

The radiator seen from inside of the frame. The hoses will have to go in front of the radiator because the hose connections didn't otherwise have enough room. The sides will have to be sealed so air meant to the radiator can't escape from the said

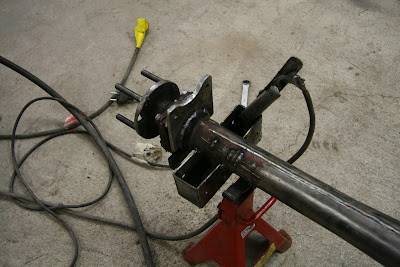

Rear caliper bracket mount.

Measuring the front track width. We are limited to a total width of 1660mm, so using maximum width allowed is important. We are aiming for a couple millimeter under it at maximum camber. The balljoints are from a Ford Transit tie rod. In the picture you can also see the neat aluminium camber adjustment part on the upper a-arm. We got it from ebay.

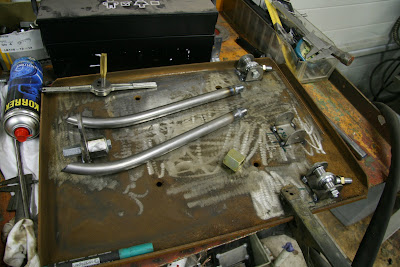

Front suspension arm jig. The lower a-arm is symmetric, so you can use the same one on the left or right side.

Making of the first front a-arm. The inner tube ends have been welded on and we're waiting for the tubes to cool. After this picture was taken we made a hole on the jig so you could weld both sides of the a-arm without having to rotate it between.

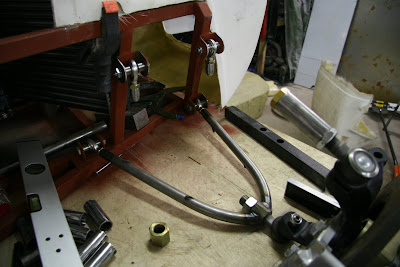

Testfitting the a-arm. We found these tubes from a garbage bin and they have been waiting to be used in some project, this is why they have a couple welds on them.

To the next we'll be making the upper a-arm.
